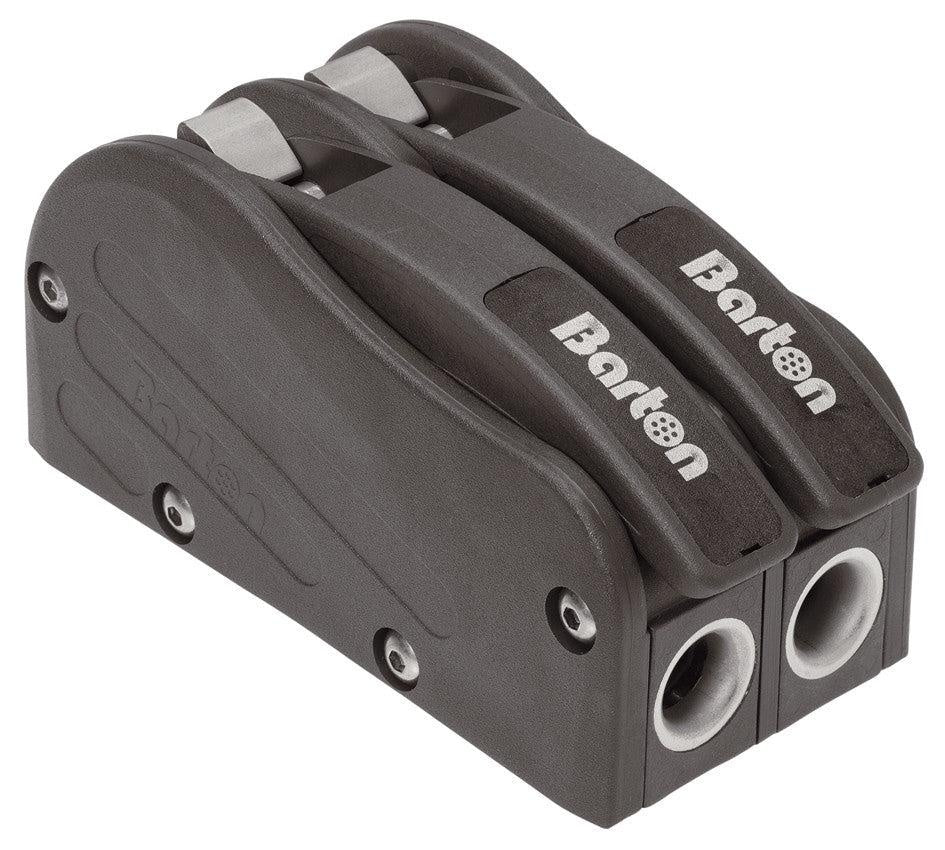

Barton Rope Clutch  - DO550 Double Clutch

An all new design for cruising and racing yachts, offering a holding power of up to 550Kgs.

Modern, high-performance materials

Manufactured from modern lightweight materials, the D0550 moulded parts are from high-grade plastics which are strong, light and impact resistant. Cams and bases are from marine grade aluminium, "Spectro" anodised for long life in the harsh marine environment.

True clutch mechanism

This true clutch mechanism allows line to be adjusted through the unit in the closed, locked position with minimal slippage, Release under load is positive and requires little effort.

The mechanism's opening and closing action is precise and easy to operate, even with cold wet hands. A positive handle lock in the closed position is also featured.

Kind to lines

The clutch's cam and base, manufactured from high grade extruded aluminium, feature a specially tempered tooth design which allows for maximum grip with minimal slippage, whilst being kind to your lines.

Stainless steel rope fairleads are fitted to both line entry and exit points; a feature which help to prevent wear to both clutch and lines.

Bolt-together construction for straightforward servicing

The D0550 clutch range features the advantage of bolt-together construction which allows for ease of servicing and replacement of parts. A full range of components is available from your Barton stockists.

Ergonomically designed handle

The handle is strong and easy to grip, with positive smooth lock and unlock action.

A unique feature of this new design is the removable insert on the top face of the handle. These inserts are available packaged separately with a selection for both cruising and racing yachts.

81 540 "Cruiser" insert pack contains: Main, Genoa 1, Spin Halyard 1, Topping Lift, Spin pole up, Spin pole down, Blank.

81 540 "Racer" insert pack contains: Reef 1, Cunningham, Reef 2, Kicker, Mainsheet, Genoa Furling, Genoa 2, Spin Halyard 2, Backstay, Outhaul. Downhaul, Blank.
